LPS II 2500 - 1kWh

★★★★★

5.0 (18 reviews Reviews)

£3,058.80 (Inc. VAT)

Optional Extra's None Remote Control - £99 Mounting Bracket - £46.80 Both £145.80

** DAB Antenna not included – Please click here to view correct antenna

Out of Stock

Currently unavailable for dispatch

Get a Quote Request Installation

Professional Installation

3 Year Warranty

Secure Payment

View full details

Description
Images
Reviews

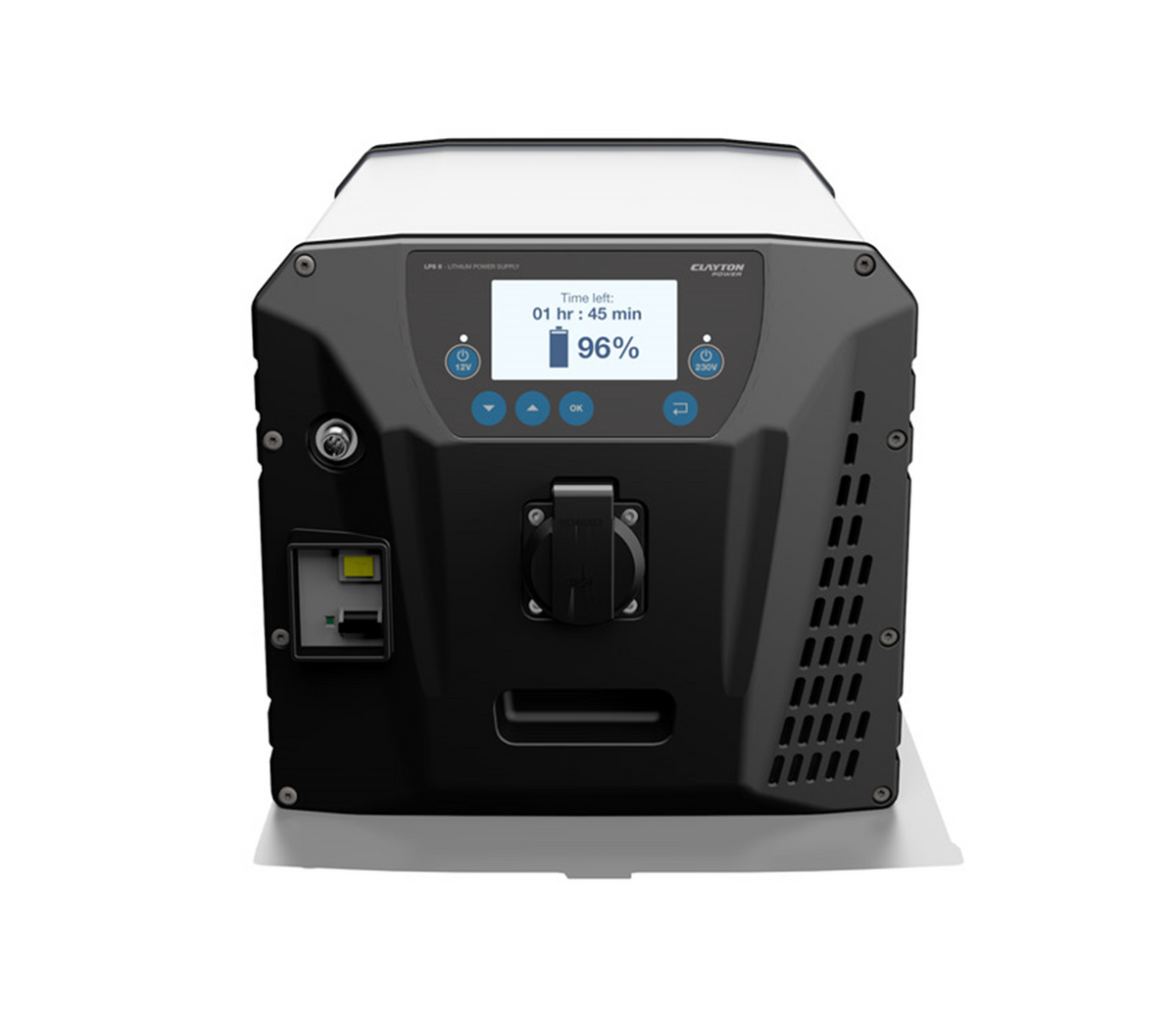

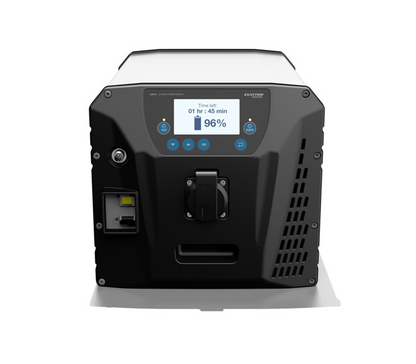

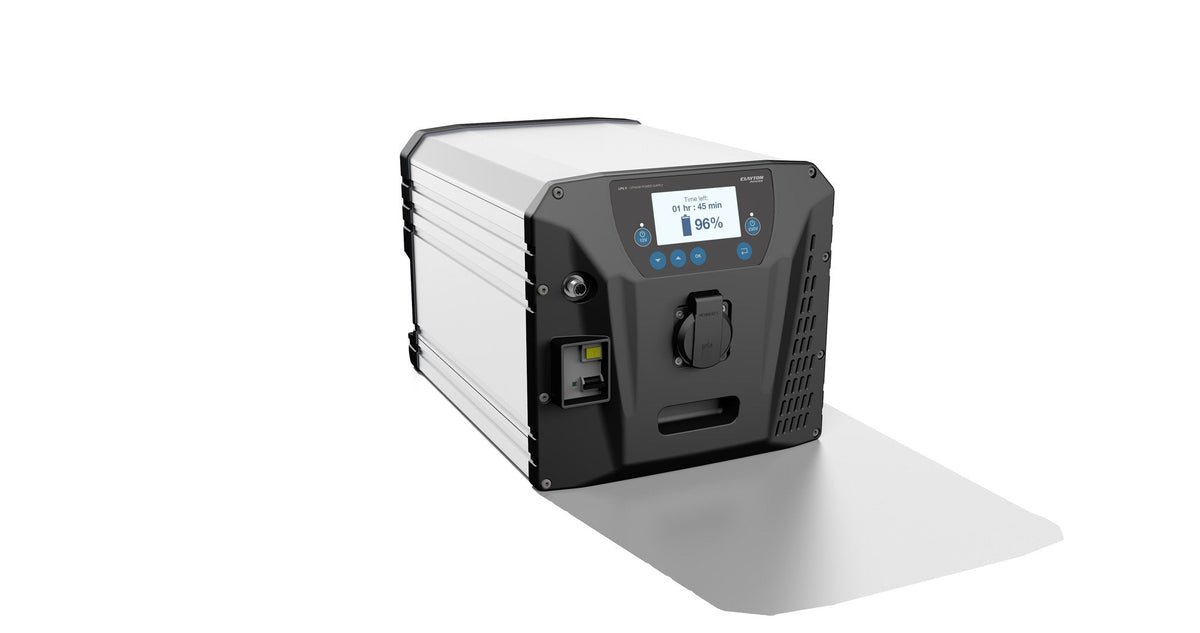

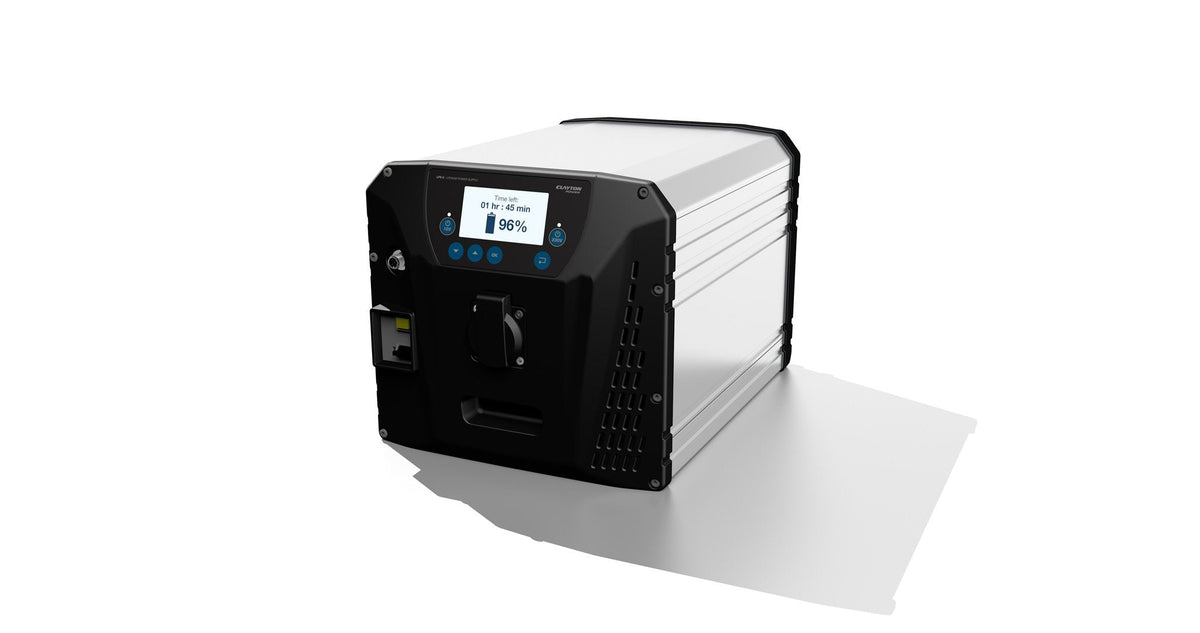

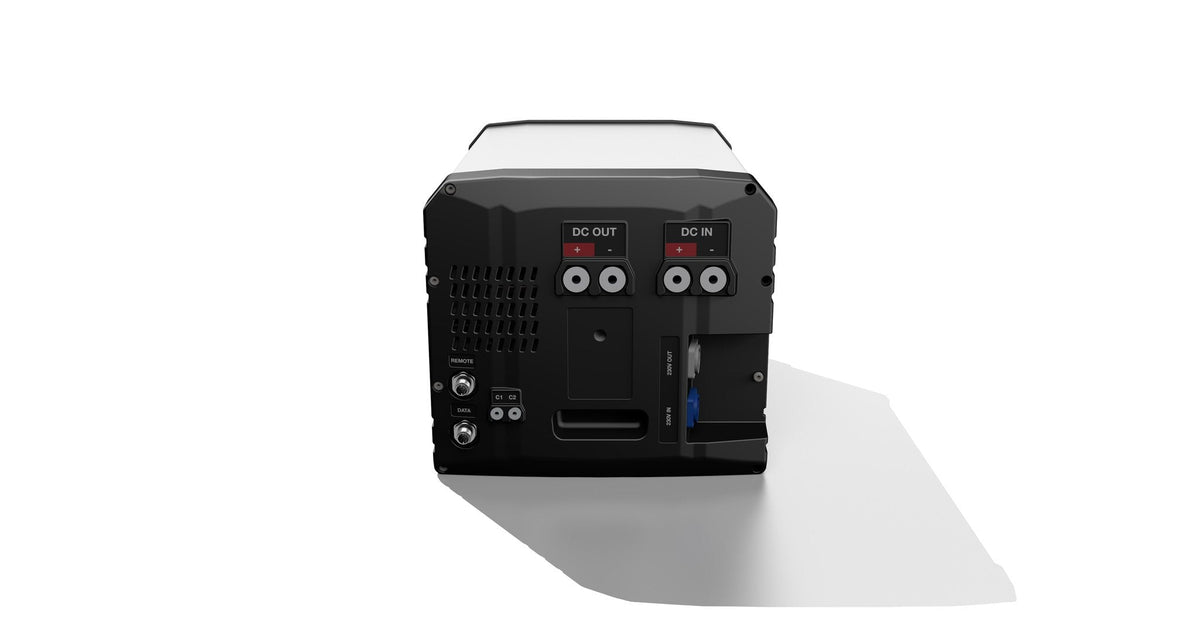

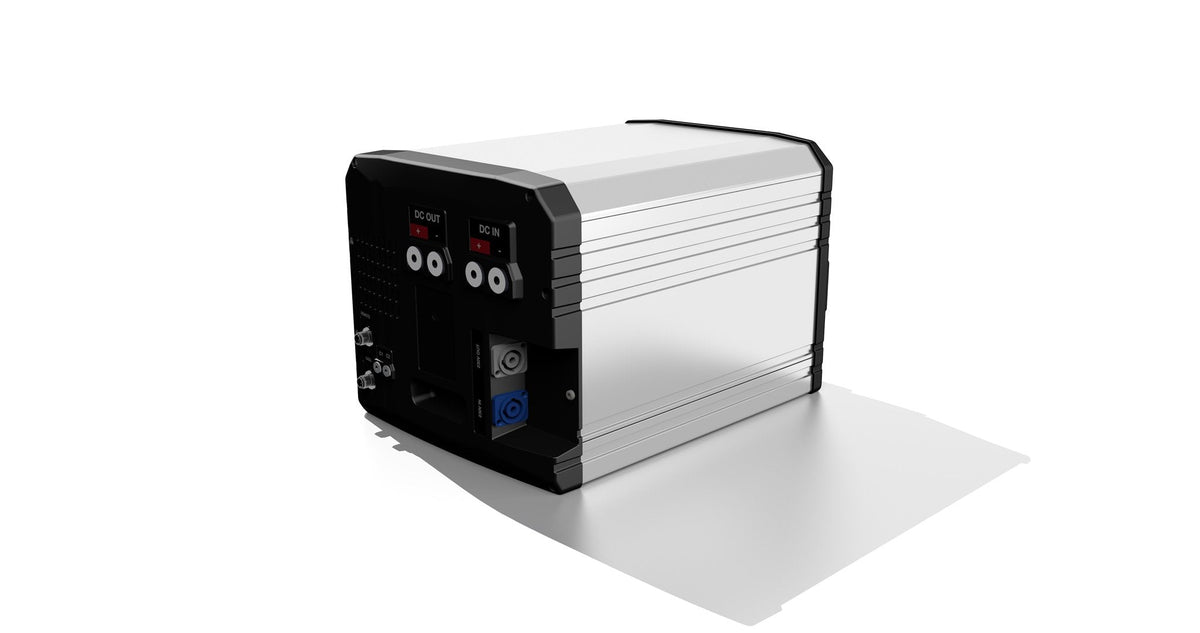

LPS II 2500 - 1kWh

LPS II 2500 - ULTIMATE POWER SOLUTION

The LPS II 2500 is the Future Of Power! the LPS combines a 1kWh Thithium Battery with a 2500W Inverter, offering a simple All-In-One Power Solution. The LPS can be used in many setups and scenaries after your specific needs. Adjustable 230 VAC & 12 VDC Charging. Go Green! The LPS offers Reduced Fuel Consumption & Enviromental Impact by allowing you to use the Power System whilst the vehicle is turned off & stationary.

Flexible Charging Ensures Top Efficiency

Charging From An Alternator

The built-in booster allows regeneration with 500 W from any alternator. 500 W standard.

Charging From Solar Panels

Connect solar panels directly. The built-in solar charge controller also allows regeneration from the sun with 400 W.

Charging From Mains

Connect to mains, the built-in intelligent charger regenerates with 750 W https://www.claytonpower.com/media/wobhenxc/daycycle1-morning-2_1.mp4

Charging When Driving

The LPS II can be charged from the vehicle's alternator with 500W (45A) - from 0%-80% in up to 60 Minutes https://www.claytonpower.com/media/rmwf5t54/daycycle2-afternoon_1.mp4

Charging With Solar

The LPS II has a built-in 400W MPPT Charge Controler allowing you to charge directly from Solar Panels. https://www.claytonpower.com/media/iknn4t5n/daycycle3-evening_1.mp4

Power & Charge Tools When Parked

Even when the vehicle is switched off, the LPS II will still charge & power your tools. LPS II 1500

All-In-One Lithium Power Supply

The powerful and compact LPS provides power to your 230 VAC and 12 VDC appliances without the complexities of additional equipment. LPS II 1500

Power Wherever You Need It

Modern power solutions made for specialistsService Vehicle ✅ | Refrigerated Vehicle ✅Camper Van ✅ | Cottage ✅ | Yacht & Sailboat ✅

All-In-One & Everything Included

An LPS II 2500 has a built-in: 1 kWh Lithium-Ion Battery, 240 V Sine Wave Inverter, Booster (Charging from alternator), 400W MPPT Charge Controller (charging from solar panels), Intelligent charger (charging from mains), relays etc.

Optional Extra's

LPS II Remote Control

Turn LPS II on/off. View state of charge, status and active jump start function.

LPS II Mounting Bracket

Thsi Mounting Bracket ensures your LPS System is mounted safely. In a Vehicle, Workshop or Off-Grid Set Up.

Product Specifications

Specifications

230 V/50 Hz output

Peak: 4000 W
Power: 2500 W

12 V output

60 Seconds: 270 A
Continously: 180 A

Built-in Li-Ion Battery

Efficient energy: 1 kWh
Capacity: 1320 Wh (100 Ah)

Charging

Alternator: 500 W / SC: 1000 W
Solar panels: 400 W
Mains: 750 W

SKU No.	CL2002
Battery type	Li-Ion 12V – 100Ah
Battery chemistry	LiFePO4
Battery capacity	100Ah (1320Wh)
Battery available capacity	80Ah (1050Wh)
AC Input voltage	207 VAC – 253 VAC
AC input frequency	45 Hz – 65 Hz
AC Input power (Charge power)	720 W
AC Output voltage +- 10%	230 VAC pure sine wave
AC Output frequency	50 Hz
AC output power – Continuously (ambient temp)	2300 W
AC output power – 10 min.	2500 W
AC output power – Peak	4000 W
AC output power – AC In connected	3000 W
AC output efficiency (1000W)	94%
DC Input voltage	11,5 – 32 VDC
DC input current	45 A
DC input current with 1 external converter (efficiency)	90 A
DC output voltage	10-14,4 VDC
DC output charge current – Continuously	90A
DC output discharge current – Continuously	180A
DC output discharge current – 1 min.	270A
Solar input charging power (max.)	400W
Solar input voltage	15 – 50 VDC
Solar input charging current (max.)	15 A
Input signals (5)	C1, C2, M12 x 3
Output signals (4)	C2 & M12 x 3
Self-discharge rate per month	< 5%
Self consumption – Operating mode, Only DC Output active	< 1 W
Self consumption – Operating mode, inverter and DC Output in with > 50W	30 W
Connection 230VAC	Neutrik and Schuko
Connection C1 / C2	M4
Connection DC input	M8
Connection DC output	M8
Cooling	Forced air (fan)
Operating temperature (output will be limited below 0°C and ab)	-20°C~50°C
IP rating	IP21
Product weight	23,5 kg
Product dimensions (HxWxL)	256x277x409mm
Jumpstart	40 A / 5 min

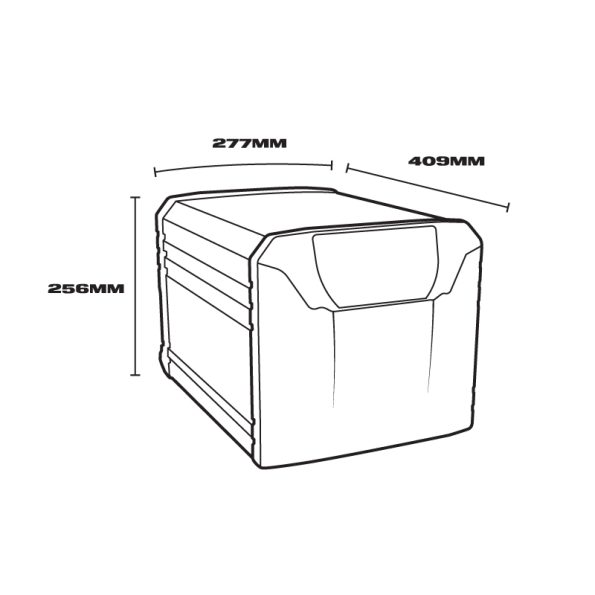

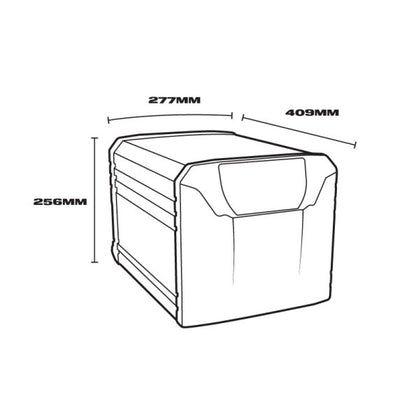

Dimensions

FAQs

What does 1 & 2 kWh mean? The lithium battery capacity of 1 kWh means that you can run an application with a consumption of 1000 W in one hour, 500 W for two hours and 250 W for four hours. A 2 kWh battery has twice the capacity. Example: Power tools 500 W x 1 hour + Light 150 W x 5 hours = 1,25 kWh How many cycles can it achieve?

The battery can handle 2000 cycles – which is usually equivalent to 10 years of use.

How long does it take to recharge?

How long does it take to recharge? 1 kWh lithium: • From 0-80% in about 60 mins from DC and mains 2x faster recharging time with the supercharger – from 0-80% in half an hour (only from alternator) • 400W recharges from solar, from 0-80%, in 90 mins (which is why solar is often used to reduce fuel consumption and for off-grid) • You can use mains, supercharger and solar in combination to recharge even faster 2 kWh lithium: • From 0-80% in about 120 mins from DC and mains • 2x faster charging time with the supercharger – from 0-80% in one hour (only from alternator) • 400W recharges from solar, from 0-80%, in 240 mins • Again, you can use all three sources simultaneously for faster recharge Is it possible to change the battery inside? No, the LPS is extremely compact and that is one of reasons that it is not possible to change the built-in lithium battery, but it has a very long lifetime.
