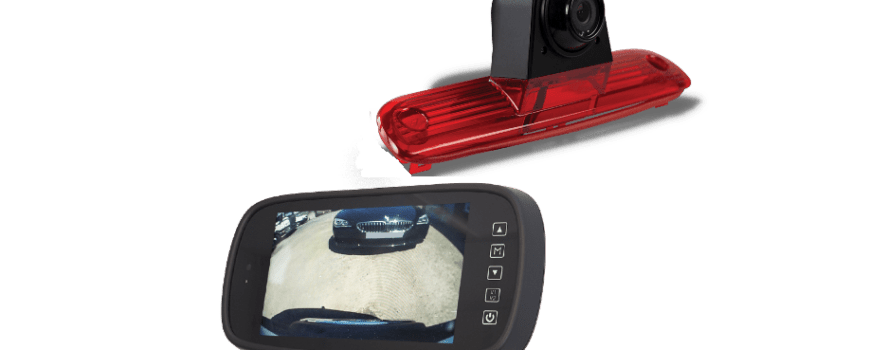

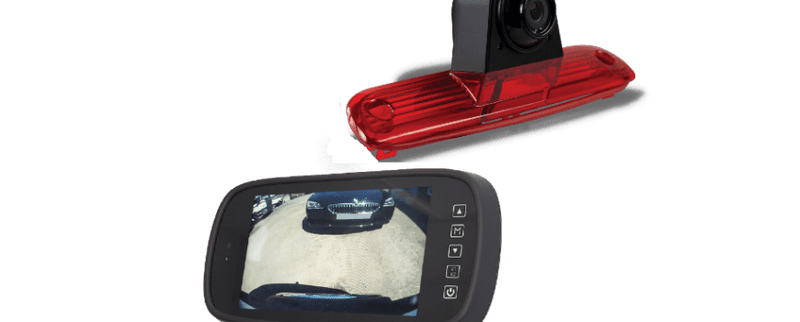

Citroen Relay Brakelight Camera & Monitor Package

Citroen Relay Brakelight Reverse Camera Description

• Replaces Fiat Part Number 1340670080 (Ducato 2006-2016>)

• Replaces Peugeot Part Number 1340670080 (Boxer 2006-2016>)

• Replaces Citroen Part Number 1340670080 (Relay 2006-2016>)

Specification:

• Image Type – 1/3” Colour CMOS

• Night vision With IR lamp

• TV System – PAL/NTSC With Switchable

• Lens Angle (Deg.) – 120 degree

• IP Rating – IP69K

• Vibration Rate – 10G

• Connector 4P BMW to 4P lock connector

• Effective Pixels N: 510×492 pixels P: 500×582 pixels

• Horizontal Resolution 700TVL

• White Balance Auto White Balance (Auto)

• B.L.C Back light Compensation (Auto)

• Minimum Illumination 0Lux (LED ON)

• S/N Ratio 48dB

• Electronic Shutter 1/60~1/100,000 Sec

• Power consumption <3W

• Built-in Lens f: 2.8mm

• Power Consumption DC 12V (+/-10%)

• Operation Temperature -30℃~+70℃.RH95% Max

• Storage Temperature -40℃~+80℃.RH95% Max

• 4 Pin connector 10m cable

Certificates: FCC, CE, E-mark, ISO9001, TS16984 & RoHS

6.5 Inch Mirror Monitor – Description

Screen Size	6.5″
Resolution	480 x 234
Format	PAL or NTSC
Inputs	2
Aspect Ratio	4:3 or 16:9
Triggers	1 or 2
Wiring	RCA
Mounting Method	Mirror Stalk
Audio	No

• Multi vehicle specific adapters available – Speak to our team for more information

Universal Adhesive Fitting Kit

This Universal Adhesive Fitting Kit is required if your vehicle does not have a windscreen button. This is included in the package. Speak to our team for additional assistance on, 0115 9229252.
