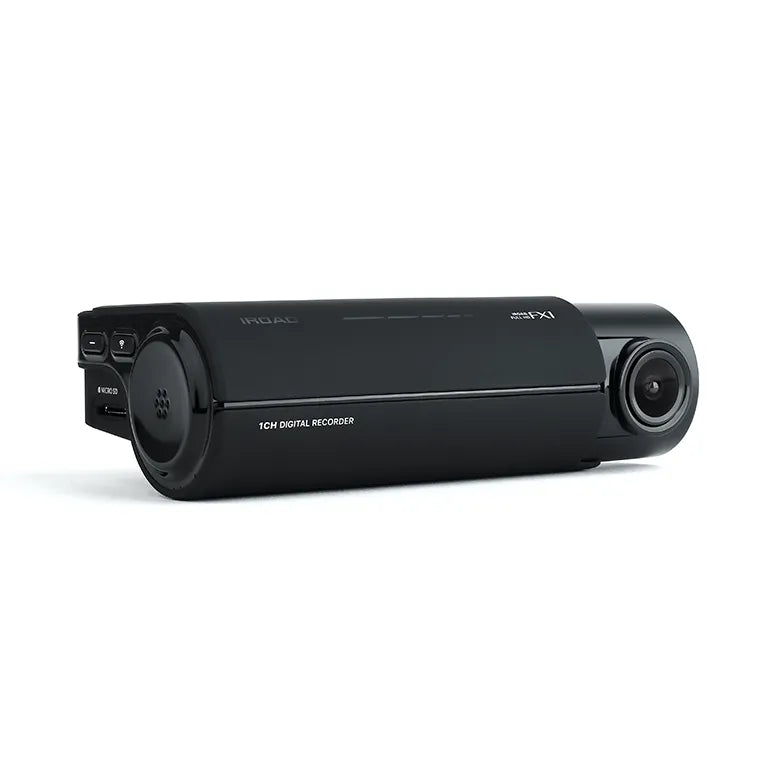

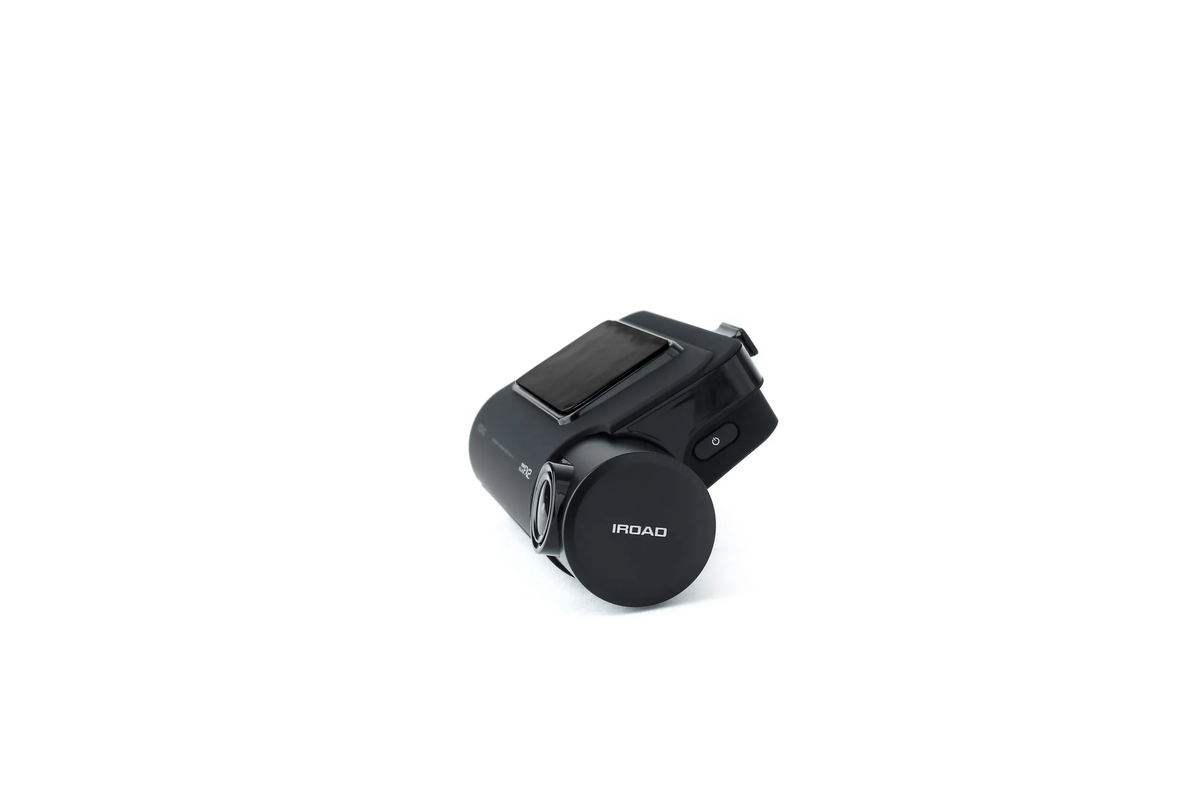

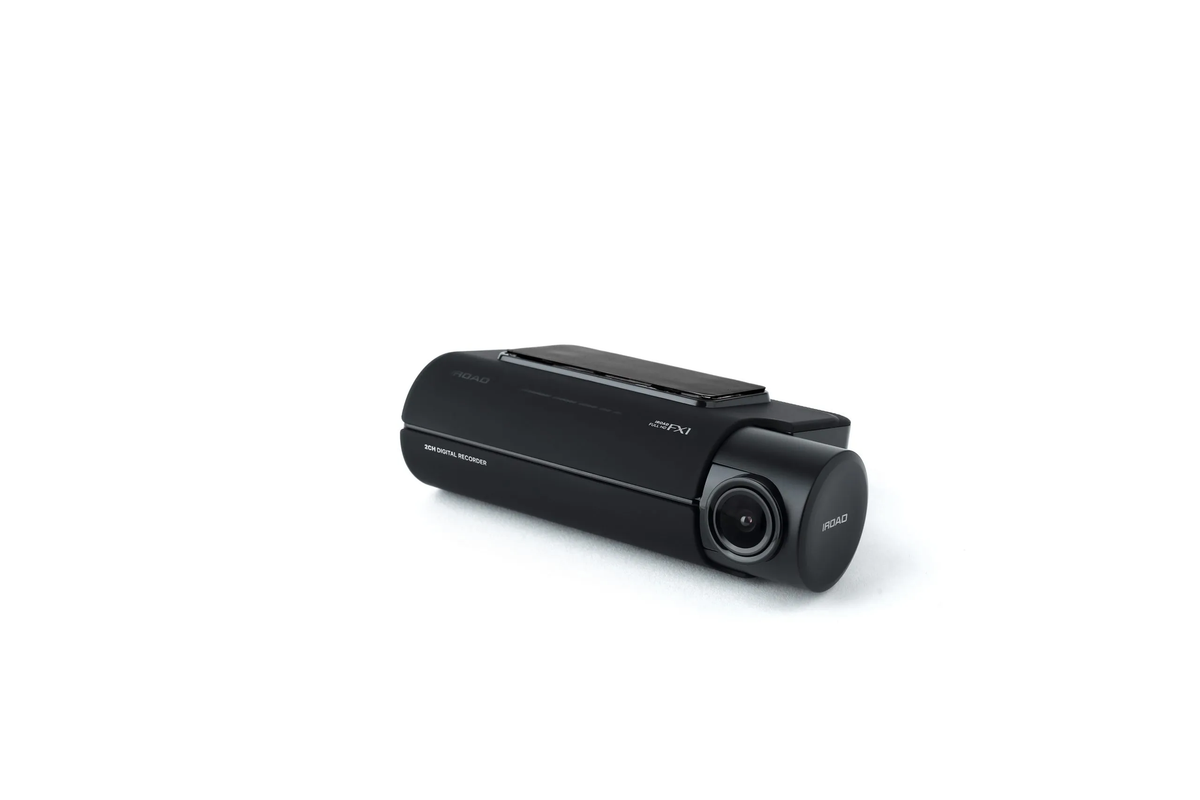

IROAD FX1 Dash Cam

1CH FHD | Built-in GPS | Time Lapse | Hyper Lapse-4X Efficiency Recording | Wi-Fi | Night Vision 140º Wide Viewing Angle | Battery Discharge Prevention | Format Free 2.2 Mobile APP (Android/iOS) | Windows/Mac Viewer

Long Drive Recording With

HYPER LAPSE

No more worries about missing out while driving long-distance. By compressing the recorded video, Hyper Lapse minimizes the memory space and saves 4 times more footage. However, when an event or impact occurs, recording frame rate switches automatically to 30 fps to provide clearer images of important moments.

Long Parking Recording With

TIME LAPSE

Experience continuous Parking Mode recording for a long time with IROAD Time Lapse. Time Lapse is a low-capacity recording method that minimizes the storage space by compressing and saving at 1fps while in Parking Mode. On the other hand, when an impact or motion is detected during Parking Mode, it switches automatically to 30 fps to provide clearer images of important moments.

1080P FHD RECORDING QUALITY

https://youtu.be/Cgm1RHRq5yo?si=kYMmMQDWTNEVrPf2

HIGH DEFINITION VIDEO QUALITY

CMOS Image Sensors allow constant FHD 1080p Front recording during both daytime and nighttime along with a 140-degree wide angle lens view. This will minimize blind spots to assure recording of all events without fail.

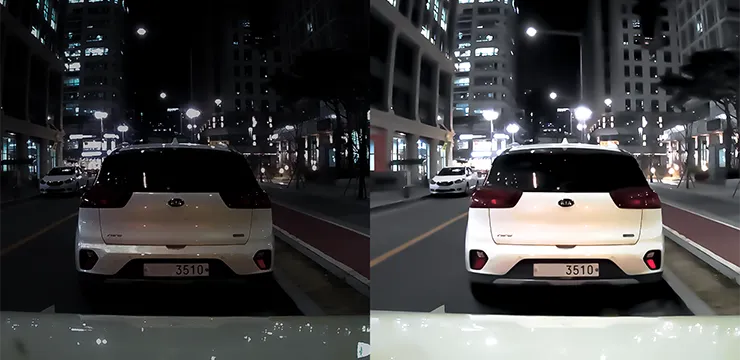

NIGHTTIME PICTURE QUALITY CORRECTION

NIGHT VISION

Videos recorded by a dash cam in low light environments such as dark alleyways or underground parking lots can pose difficulties when you try to accurately identify information from the image. IROAD NIGHT VISION employs the new ISP (Image Signal Processing) technology and the real-time image processing function to provide brighter images than our earlier models when recording at nighttime during Parking Mode.

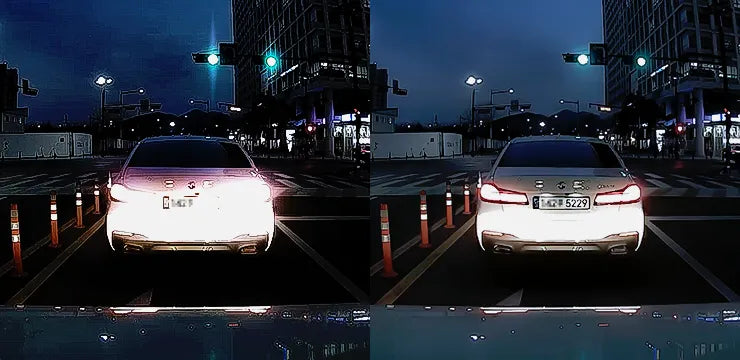

LIGHT EXPOSURE

AUTOMATIC EXPOSURE

Sudden light exposure while driving, such as strong direct sunlight or the light of incoming vehicles at night, can sometimes affect your vision and make it difficult to assess the situation. The IROAD FX series dash cams automatically adjust the amount of light exposure to provide bright and clear images in any situation.

140º WIDE ANGLE LENS

The 140 ° angle lens offer a wide angle of view and minimize blind spots, ensuring all scenes that can be seen through the front windshield are completely recorded.

ENERGY SAVING 2.4W

In parking mode, power consumption is greatly reduced to maximize recording time. In addition, to protect the vehicle battery, the dash cam automatically powers off when the vehicle battery voltage falls below a certain set value (Battery Discharge Prevention).

HIGH-TEMPERATURE PROTECTION

The FX series models are built to endure both high and low temperatures in order to keep the device running smoothly. The high-temperature protection function makes the device automatically turn off in case of overheating, protecting both the device and the stored data.

FORMAT FREE 2.2

The IROAD FX series dash cams use a new file format which allows for a higher compression rate, uses memory space more efficiently and provides outstanding image quality. Format Free 2.2 is a server storage technology developed by IROAD that maximizes the life span, stability and efficiency of memory cards.

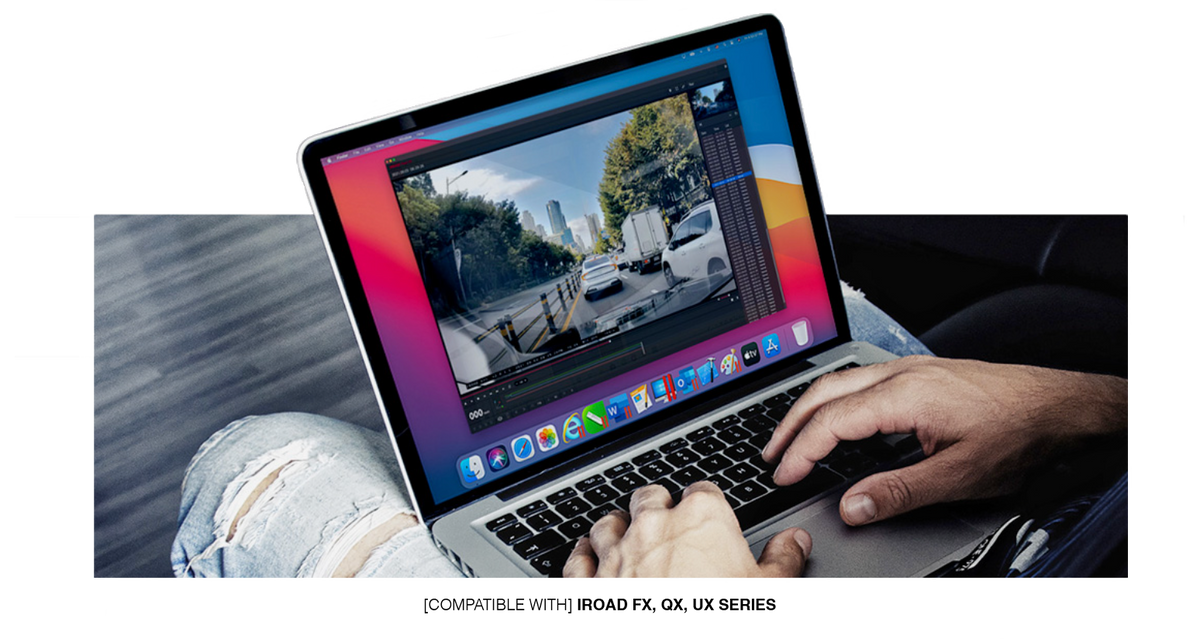

IROAD PC X-VIEW

DETAILED SETTINGS AND FOOTAGE INFORMATION

The intuitive and easy-to-use interface of IROAD PC X-VIEW offers a simple and convenient way to watch your recorded videos on your PC or Mac. You can playback and download recorded videos, as well as check your route history and driving speed data.

IROAD FX Series Specifications:

Specification

RESOLUTION / FRAME RATE	FHD 1920x1080p
VIEWING ANGLE	140°
WI-FI	Firmware Automatic Update, Smartphone Playback/Settings
WI-FI BUTTON	Activate “Stand-by Mode for Registration”
AUDIO INPUT	Embedded MIC
VIDEO/AUDIO	H.264/PCM
VIBRATION SENSOR	3-axis Acceleration Sensor
VOICE GUIDANCE	Effect sound/buzz alerted to inform the condition of the device Voice Guidance supported
GPS	Records the location and travelling speed of the vehicle, Synced with Google Maps
CAPACITY	Micro SD 32GB ~ 512GB (Class10)
RECORDING MODES	Driving (Normal, Hyperlapse), Event (Impact), Parking (Timelapse, Motion Dectection)
UNINTERRUPTED POWER	Uninterrupted Power (Low voltage cut-off, overheating prevention is embedded)
POWER SUPPLY	DC 12V/24V
OPERATION TEMPERATURE	-10 ~ 60°C
HUMIDITY	10 ~ 95%
PC VIEWER	Mac (macOS 11.0 or higher), Win10 (64Bit), Win7, Win8
APPLICATION	Android 6.0, iOS 13.0 or higher

SD Card Storage Time:

Standard Driving Mode (30FPS)

Storage	Recording Time
32GB	About 4H 20Min
64GB	About 8H 40Min
128GB	About 17H 20Min
256GB	About 35H 40Min

** This Is Based On A Freshly Formatted SD Card ** If Parking Mode Is Enabaled, This Will Effect The Times Shown Above. HYPER LAPSE Driving Mode

Storage	Recording Time
32GB	About 48H
64GB	About 96H
128GB	About 192H
256GB	About 382H

** This Is Based On A Freshly Formatted SD Card ** If Parking Mode Is Enabaled, This Will Effect The Times Shown Above.
